Sato Label Printer Ribbon End Error

May 14, 2021 Post a Comment

Quick Reference Troubleshooting Guide for Sato Thermal Printers PROBLEM PROBABLE CAUSE REPAIR 1 No LCD display Printer unplugged 1 Plug in printer Printer turned OFF 2Turn power switch ON Display cable loose 3 Reconnect cable Bad display PCB 4 Replace display. Replace the main circuit board as necessary.

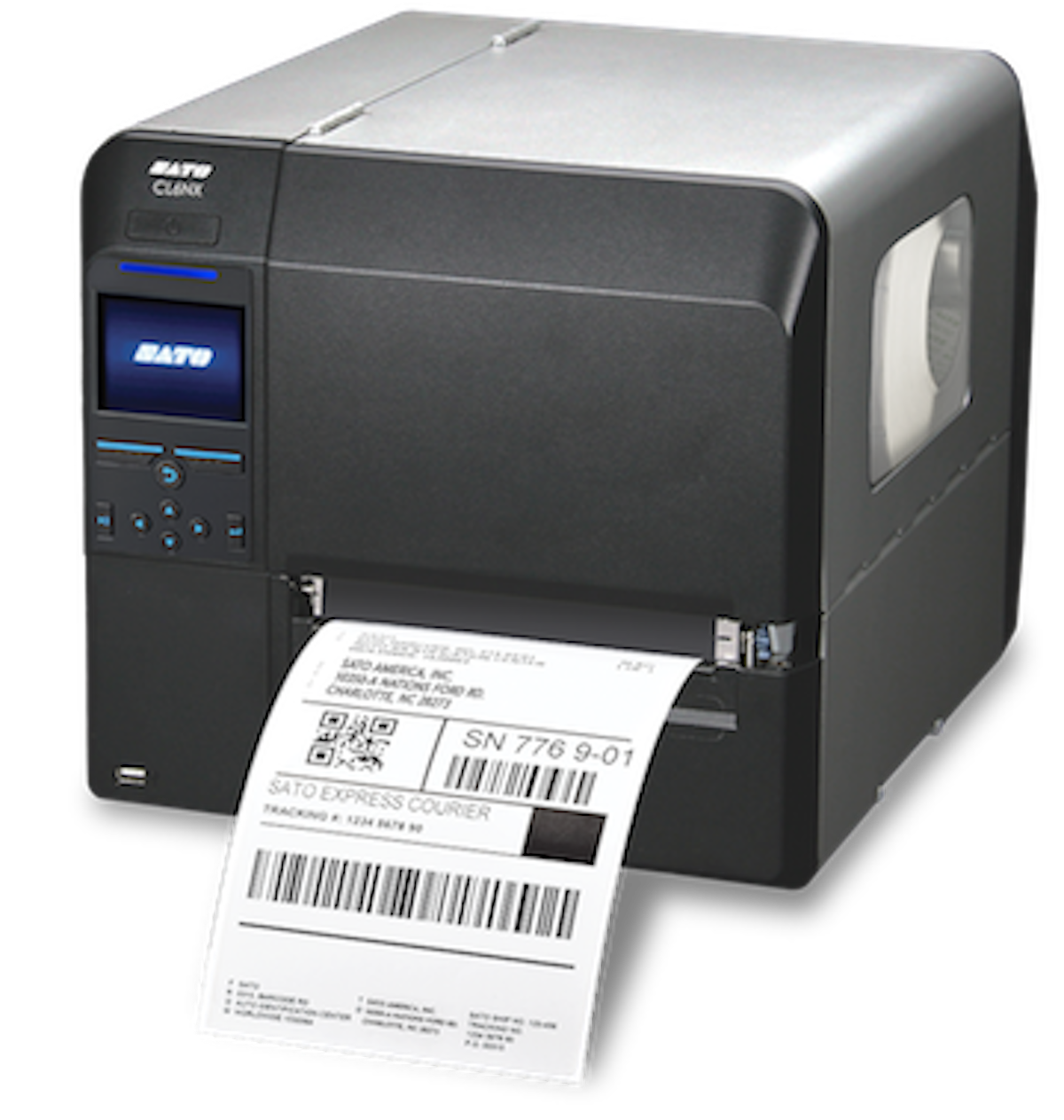

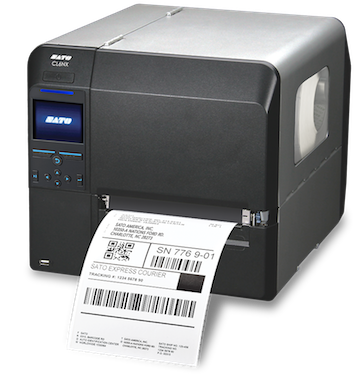

Sato Cl4nx Plus Label Printer 305 Dpi

Error On EEPROM Error 1 Long EEPROM ReadWrite Cycle power onoff.

Sato label printer ribbon end error. Ribbon end error occurs when the product detects that the ribbon in the ribbon supply spindle has not moved rolled more than 15 mm 059 after feeding the media. If the amount of media remaining is more than the distance between the print head position and paper end sensor -15 mm -059 a paper end error. Select the appropriate sensor type using DSW2-2 on the printer.

Error On Head Error 1Long Head Cycle power onoff. Posted June 23 2014. Appendix 882 Fanfold Label End Feeds 50mm I-Mark 2 Media feed direction The printer behavior when paper end is detected is as follows.

Page 102 Unit 5. Reinstall the calendar chip. Incorrect sensor type selected on the printer andor in the softwaredriver settings.

If using GAP media the I-Mark voltage threshold must be less than 10V or Paper End error will occur. 9 Press the LINE key to place the printer off-line. Lift away front cover 2.

When Using the Product. Ribbon end error is detected by the ribbon sensor in the ribbon supply spindle. Check the obvious first.

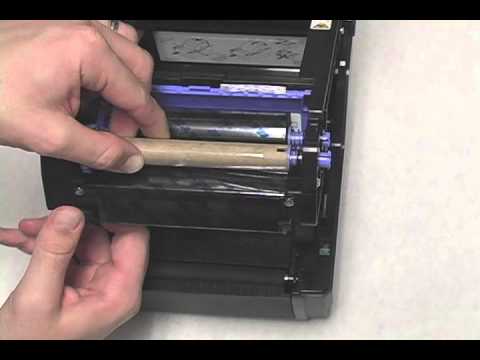

During Installation and Immediately After Installation. Troubleshooting ERROR DISPLAYS ERROR LED DISPLAY DESCRIPTION LCD DISPLAY POWER. Be sure the ribbon cores are securely on the ribbon spindles and they do not slip as the ribbon comes off the ribbon supply.

Dirty or obstructed sensor andor media loaded improperly. If an error occurs while printing label 2 will be printed again after releasing the error. Sensor Error Common CausesSolutions for the Sato CL408e and CL412e.

Ensure proper printer configuration. If the amount of printing remaining is less than the distance between the print head position and paper end sensor -15 mm -059 a paper end error occurs after completing the output of 1. After printing and feeding label 2 50mm 2 Paper end error will occur.

Once completed choose EXIT CALIBRATION to return to the Service Menu press the FUNCTION button to return printer OFFLINE and press FEED button to ensure media feeds through the print engine. 10 Press the FEED key to generate a blank label and confirm that the ribbon has been properly. All of SATOs thermal ribbons are halogen-free demonstrating our commitment to green initiatives and safety.

Ensure media is properly loaded. Page 23Reapply two screws 7 to side frame bracket 8 and four screws 5 to back panel 6 to secure print mechanism. Page 104 Instructions for installing the Memory Card Option are included with the installation kit.

Our genuine SATO branded ribbons are designed to maximize the life of your printheads and provide consistent print quality. If you dis-assemble the end of the spindle and inspect the washers you know this is it because if it is the align hole will be clogged with buildup and you will need to remove the buildup and re-seat it back on the notch and make sure you. The Ribbon End error on this model printer may be caused by a pinched timing sensor wire in the Left Ribbon Frame Assembly.

Remove the ribbon and label stock if applicable and leave the print head open. The paper end sensor detects a no-paper condition at the position where 15 mm 059 has been fed. 8 Switch off the printer install ribbon and switch the printer on again.

SATO offers competitively priced ribbons for thermal printers. Bob Bruner from RACO Industries demonstrates how to prevent ribbon wrinkle and properly maintain an enterprise thermal transfer printer. Conditions That Trigger Ribbon End.

Remove screw 1 Figure 4-1a securing front cover 2 to the printer frame. Error On Sensor Error 3 Short Sensor Cycle power onoff. Error Handling Memory Card error conditions are indicated to the operator using a combination of the ERROR.

By Bill Marks on December 21 2010 in Uncategorized. Error Blinks Media Error 3 Short Media Error Openclose Head Lever Label Blinks Ribbon Blinks None Ribbon Near End Replace ribbon with full roll Line Blinks None Buffer Near Full Slow down transmission rate SATO Se Print Engines Page 7-7. Sato m84pro troubleshooting.

TROUBLESHOOTING ERROR SIGNALS TROUBLESHOOTING TABLE TROUBLESHOOTING PROCEDURES RIBBON SENSOR OPERATION VERIFICATION IMAGE VOIDS RIBBON WRINKLING LIGHT PRINT IMAGES SMEARED PRINT IMAGES NO RIBBON MOVEMENT NO LABEL MOVEMENT NO PRINTED IMAGE. Power off the printer to release the error. Error Blinks Card RW Error 1 Long Memory Card ReadWrite Cycle power onoff.

If the align hole on the washer jumps off of the notch on ribbon boss it will create slippage and trigger a false ribbon end error.
