How To Align Zebra Label Printer

September 19, 2021 Post a Comment

Insert your Zebra ZD410 label roll To open the printers lid pull the yellow latches towards you and lift the lid upwards. Enter the Width and Height of the labels you are using and click the Finish button.

Legacy Hardware Barcoding Inc Zebra Office Solutions Retail Solutions

When the printed width matches the label width or your preferred setting tap.

How to align zebra label printer. Calibrate the printer for the media. Allow the printer to complete feeding labels and printing a sensor profile. The printer will return to a ready state when complete with a green status indicator.

Open the Media Guidesand hold open the Media Hangers 3. This will make the printer enter label width calibration. Contact Clients Services to have printer calibrated.

Check your narrow bar width in your case 2 BY2 Find out your label total width in dots. This placement uses x y coordinates x horizontal y vertical that are like an address positioning the image in memory as it is constructed in the printer memory in preparation for printing. 8 dots mm.

Align the red light with an area of the label that allows the sensor to view a consistent inter-label gap 2 -. Once calibration is finished the labels should be properly aligned. These directions work for the models that.

As soon as the feed button starts to blink red release the feed button. There are two calibration methods to consider if the labels fail to calibrate properly. Close the printer and press pause once.

To help you locate the Feed button it is green and depicts labels passing through a roller. This will make the printer enter label width calibration. The Moveable Sensor can be used for gap notch or hole top of form detection.

Zebra 160 Thermal Printer Label Alignment Instructions. Hold down the Feed button until the light flashes five times then release it. Hold down the button until the light flashes five times then release it.

The printer does not measure the label length unless the default Power Up or Head Close values are altered to either Length or Calibrate. Load the printer with the labels for your application Read More. Power on the printer.

The printer will cycle through several labels. On the printer hold the feed button down and turn the power back on. For this you have to know what is your printers resolution eg.

With Zebra label printers power off the printer and hold the feed button down. Pull the yellow roll guides apart and insert the roll with the labels face up. The printer should now.

The printer should begin the calibration stage and will eject several labels before being calibrated. It will print a series of widths getting wider each time on a label. The printer will feed and measure several labels.

Power the printer back on and after the feed light blinks twice release the feed button. So if you have a 80 mm wide label 80 8 640 dots Count each character in your barcode including. With the printhead open and the printer power on locate the Moveable Sensors red light in the mouth of the printer.

Lower the roll between the hangers 4. It will print a series of widths getting wider each time on a label. Make sure to position the roll so that its printing surface will be up as it passes over the media guides 5.

Zebra ZP-450 ZP-500 ZP-505. Open the printer and reposition the media so a label is directly positioned above the movable sensor. The label objects are positioned on the label using ZPL language coordinates and image fields.

Pull the release latches toward the front of the printer 2. If using the 2up labels set the width to 2 and the height to 5. Easy instructions showing how to calibrate a Zebra G-Series desktop label printer like the GK420 GC420 or GX420.

Release the the roll guides and push them together to make sure the roll is secure and turning freely. Turn off the printer power using the power switch on the back of the printer. Open the Zebra Setup Utilities app and click the Configure Printer Settings button.

Press and hold the Feed Button until it flashes two times then release it.

Zebra Zd420 Printers First Setup And Calibrate Operations

Zebra Zt230 How To Manually Calibrate Ribbon And Media Sensors Youtube Zebra Printer Zebra Sensor

Zebra Gk Desktop Label Printer Atlantic Scale

How To Get Your Zebra Printer To Work With Light Colored Ribbons Barcoding Newsbarcoding News

Zebra 140xi4 Industrial Printers Price In Dubai Uae Africa Saudi Arabia Middle East Label Printer Printer Zebra Printer

Thermal Printer Zebra Gc420 200520 0 Thermal Printer Zebra Gc420 200520 0 Description If You Re Zebra Printer Thermal Printer Label Printer

Setting Up The Zebra Zd410 Label Printer On A Mac Lightspeed Retail

Calibrating The Zebra Gk420d Label Printer Blog Northern Label Systems

Midrange Repair Parts Presents Zebra Zt400 Ribbon And Media Calibrate Procedure Zebra Printer Zebra Repair

Zebra Label Printer Problem In Quickbooks Point Of Sale

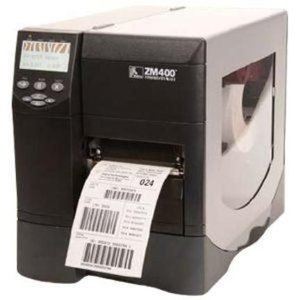

Zebra Zm400 Thermische Label Printer 200dpi Usb Mileservices
